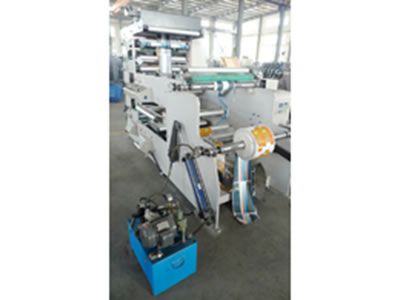

Flexo Printing Machine

Characteristic
1. This flexo printing machine adopts the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding tension are auto-controlled by tension controller.
3. Each printing unit adopts 3600 plate-adjustment.
4. IR dryer (hot air type) for each printing unit.
5. The ink rollers will be separated from the printing roller, and keep running when the machine stopped.
6. This series of flexo printing machine is mainly used for printing paper cups and packaging labels.
7. The machine can finish material-feeding, printing, drying and rewinding in a lump.

Main technical specification

Printing speed	50m/min
Printing color	5colours
Max. width of paper	850mm
Max .printing width	820mm
Max. unwinding diameter	600mm
Max. rewinding diameter	600mm
Printing length	Z56-112/Z65-145/Z75-170
Precision of chromatography	±0.15mm
Dimensions	3.45mX1.9m X2.5m (LXWXH)
Machine weight	About 4300kg

Optional auxiliary equipment
There are several options for this flexo printing machine.
1. Electric web-guiding system
2. Video system
3. Big unwinder&rewinder with diameter of 900mm

Main equipment
The main equipment of our flexo printing machine is listed below.
Printing roller: 3sets, the size is determined by the user.
Anilox cylinders: 1set, the lines can be chosen from 200 to 800 by the user.
Plate mounting machine: 1set
Unwind tension controller: 1piece                               Mitsubishi of Japan
Sensor: 2pcs                                                                    Mitsubishi of Japan
Rewind tension controller: 1piece                                Made in china
Magnetic power brake: 2pcs                                          Ningxia, China
Electromagnetism valve: SMC 1piece                         Japan
Inverter: TECO Brand                                                      Taiwan (stop automatic when paper lack)
Contactor: Schneider                                                      France
Center relay: Schneider                                                  France
Temperature controller                                                  Yuyao in Zhejiang
All switches: Schneider                                                  France
Other low-pressure wiring                                            Schneider, France/ Yaohua, China
